Building an Air Traffic Management Workflow with Quantum Computing

Overview

Welcome to this comprehensive tutorial on creating BPMN workflows for the Platform platform! You'll learn workflow fundamentals while building a complete quantum application that solves a real-world optimization problem: air traffic management.

By the end of this tutorial, you'll be able to:

• Understand BPMN basics and workflow concepts
• Use the visual workflow modeler effectively
• Design both sequential and parallel service execution
• Implement proper data flow between services
• Create production-ready quantum workflows
• Test and debug complex workflows

What You'll Build

An air traffic management system that:

1. Encodes flight routes into a quantum optimization problem
2. Solves the problem using quantum computing (DCQO service)
3. Decodes the quantum solution back to flight corridor assignments
4. Visualizes both the problem and solution on generated maps
5. Runs in parallel to generate the problem visualization while solving the quantum problem

Why Use Workflows?

Workflows solve a key challenge in quantum computing: **orchestrating complex, multi-step processes without manual programming **. Instead of writing Python code to integrate individual Platform services, you can:

• ✅ Visually design your process flow using BPMN diagrams
• ✅ Automate service execution with built-in error handling
• ✅ Handle long-running processes (hours to weeks) reliably
• ✅ Monitor progress in real-time
• ✅ Reuse workflows as standalone Platform services
• ✅ Bridge technical and business requirements for better collaboration

The Problem We're Solving

When multiple flight routes intersect, a flight authority must assign each flight to different air corridors to prevent collisions. This is a complex optimization problem that becomes computationally expensive as the number of flights increases. Quantum computing can find optimal corridor assignments more efficiently than classical methods.

Running Example

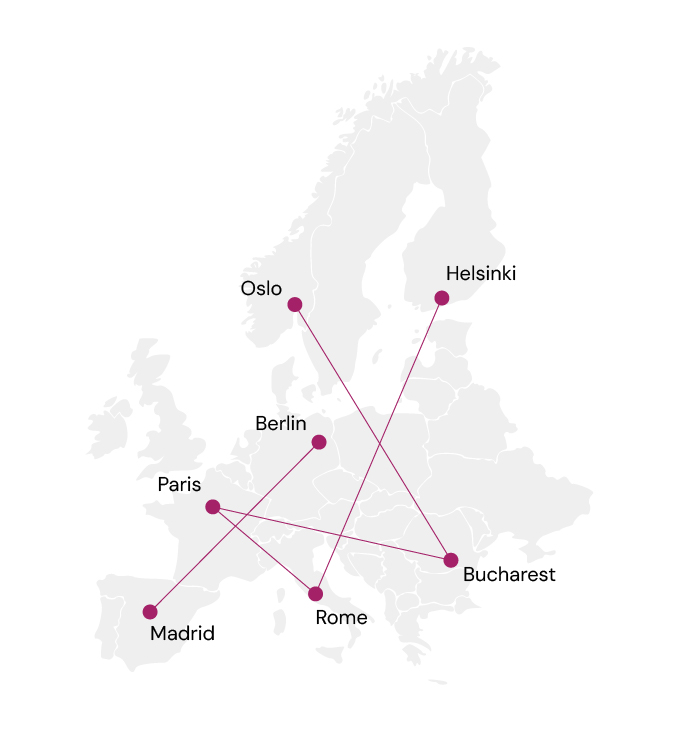

We use the following running example throughout the tutorial: Consider the following five flight routes:

• HEL → FCO (Helsinki to Rome)
• BER → MAD (Berlin to Madrid)
• CDG → OTP (Paris to Bucharest)
• FCO → CDG (Rome to Paris)
• OTP → OSL (Bucharest to Oslo)

Given these flight routes, we have several intersections:

• HEL → FCO intersects with
  • OTP → OSL
  • CDG → OTP
• BER → MAD intersects with
  • FCO → CDG
  • CDG → OTP

Thus, our air traffic management system must:

• Identify which routes intersect
• Use quantum optimization to find non-conflicting corridors for intersecting routes
• Generate visual maps showing the corridor assignments

Prerequisites

Before starting this tutorial, you should:

• Be familiar with basic quantum computing concepts
• Have a new application created for our new workflow service
• Have subscriptions to the following Kipu services within the application:
  • DCQO Service - Digital Circuit Quantum Optimization You can create a free subscription to this service using our marketplace. Simply navigate to "Pricing & Subscription" and click "Subscribe".
• Have instantiated the following Kipu services from the implementations by simply clicking the "Create Service" button on the top right:
  • AirSpace Encoder - Converts flight routes to quantum problems
  • AirSpace Decoder - Converts quantum solutions to corridor assignments
  • Air Traffic Visualizer - Generates map visualizations
• Have published the three services internally and subscribed them in your application

Important

Make sure to subscribe to all the services within an application.

TIP

Use the same application for all services. You can subscribe to multiple services within one application as well as have subscriptions to the same service in different applications.

Need Help?

Join our Discord Server.

Part 0: Understanding BPMN Basics

Before diving into workflow creation, let's understand the fundamentals of BPMN (Business Process Model and Notation).

What is BPMN?

BPMN is a standardized visual language for modeling business processes. Within the platform, we use BPMN 2.0 to define how quantum services should be executed and how data flows between them.

Key BPMN Elements for Platform Workflows

Element	Symbol	Icon	Purpose
Start Event	○		Marks where your workflow begins
End Event	●		Marks where your workflow ends
Platform Service Task	▢		Executes a subscribed Platform service
Parallel Gateway	◇+		Splits flow to run tasks in parallel
Sequence Flow	→	→	Shows the order of execution

Example: Simple Sequential Workflow

○ → [Generate Circuit] → [Execute on Backend] → [Send Results] → ●

This workflow executes three services one after another in sequence.

Example: Parallel Execution Workflow

○ → [Generate Circuit] → ◇+ → [Backend 1] → ◇+ → [Send Results] → ●
                          └ → [Backend 2] → ┘

This workflow generates a circuit once, then executes it on two different backends simultaneously. The parallel gateway (◇+) splits the flow, and another parallel gateway synchronizes the results.

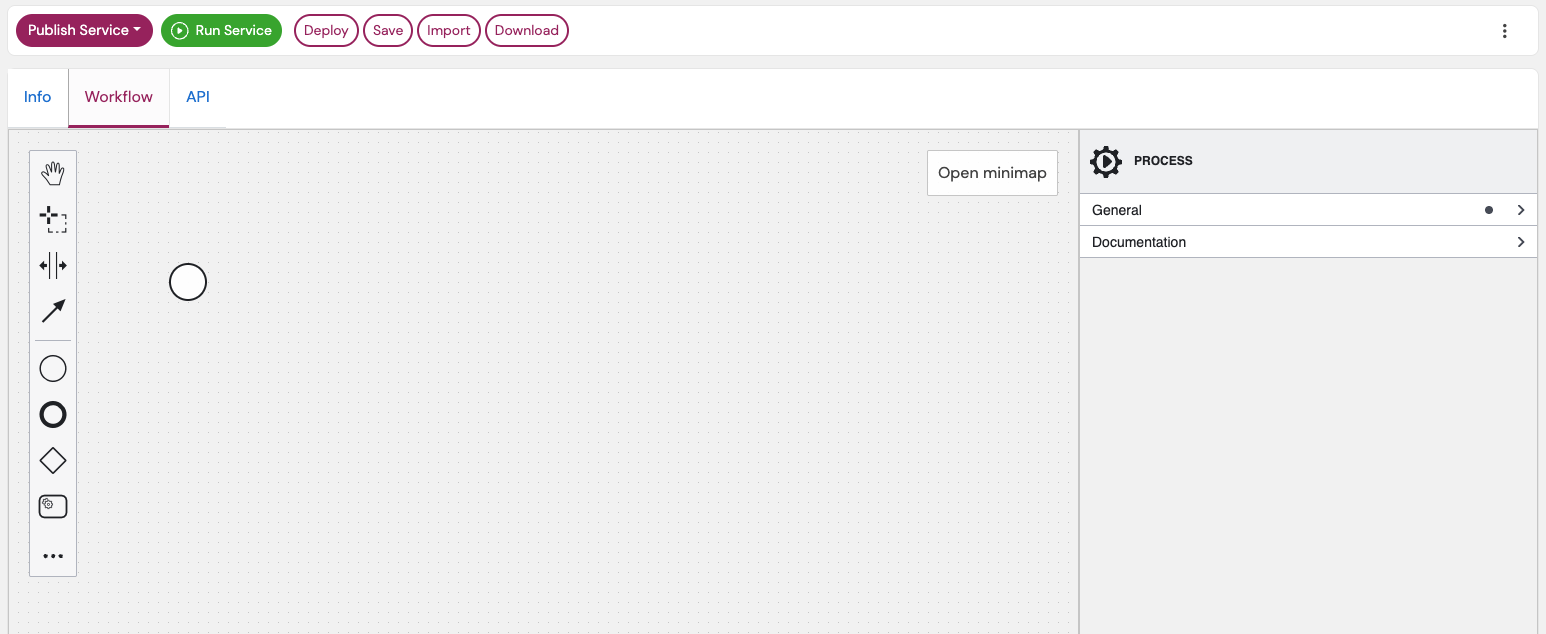

Understanding the Workflow Modeler Interface

When you create a workflow service on our platform, you'll work with the visual workflow modeler. Here are its main components:

The Canvas (Center)

• Central workspace where you design your workflow
• Initially shows only a Start Event (○)
• Drag and drop elements from the palette to build your workflow
• Click and drag arrows to connect elements

The Palette (Left Side)

• Contains all BPMN elements you can use
• Common elements are visible by default:
  • Platform Service Task (▢)
  • Parallel Gateway (◇+)
  • Exclusive Gateway (◇×)
  • End Event (●)
• Click "..." for advanced elements (loops, conditional flows, boundary events)

The Properties Panel (Right Side)

• Displays configuration options for the selected element
• Click on any element to see its properties here
• Use it to:
  • Configure service subscriptions
  • Set input/output data mappings
  • Define API parameters
  • Add error handling
  • Set timeouts

How Data Flows in Workflows: Workflow Variables and Data Mapping

Each service in your workflow can:

• Receive input data from previous steps (or from the workflow input)
• Produce output data for following steps
• Access workflow variables defined anywhere in the workflow

You can use variables to store and pass data between services. This includes input parameters, service outputs, and intermediate results. All variables are stored in a shared context accessible by all workflow tasks. As a result, you can define an input parameter at the Start Event and use it in any subsequent service. Similarly, outputs from one service can be stored as variables and used later.

Variables are defined in two ways:

1. At the Start Event, i.e., as input parameters: Define input parameters in the "API Description" section of the Start Event. This enables the modeler to recognize the parameters as workflow variables.

   For example, consider you want to have two input parameters and define the following at the API description of the Start Event:

   {
     "flightRoutes": [
       {
         "origin": "HEL",
         "destination": "FCO"
       }
     ],
     "map_output": {
        "ref": "datapool",
        "id": "uuid-of-your-datapool"
     }
   }

   Within the workflow, these inputs become available as variables with name flightRoutes and map_output that can be used throughout the workflow.

2. From Service Tasks: Store service outputs into output variables. Our modeler supports the API description of a service. Thus, you can see what outputs are available to store as variables. You can even select a nested object from a service's output to store as a variable.

   For example, consider a service with output like this:

   {
     "result": {
       "id": "12345",
       "status": "completed"
     },
     "execution_time": 120
   }

   Then you can store the entire result object as a variable or just the id field by specifying result.id.

We'll see concrete examples of this later in the tutorial. For more information, see our Data Manipulation in Workflows guide.

Part 1: Understanding the Workflow Architecture

Workflow Overview

○ → [Encode Routes] → ◇+ → [Solve with DCQO] → [Decode Solution] → ◇+ → [Visualize Solution] → ●
                       └ → [Visualize Problem] ------------------→ ┘

Services

1. AirSpace Encoder

The AirSpace Encoder service converts flight routes into a quantum optimization problem. It analyzes which routes intersect and creates a quantum problem where the goal is to minimize conflicts by assigning routes to different corridors.

Input

{
  "flight_routes": [
    {
      "origin": "HEL",
      "destination": "FCO"
    },
    {
      "origin": "BER",
      "destination": "MAD"
    }
  ]
}

Output

• coefficients: Mathematical representation of the optimization problem
• airports: List of airports with coordinates (for visualization)
• route_mapping: Mapping between flight routes and quantum qubits

2. DCQO Service (Digital Circuit Quantum Optimization)

The Kipu DCQO service solves a quantum optimization problem. In this case, the one encoded by the AirSpace Encoder. To achieve that, it executes a quantum algorithm to find the optimal corridor assignments that minimize conflicts.

Input

• coefficients: The problem from the encoder
• problem_type: "binary" (each route is assigned yes/no to each corridor)
• shots: Number of quantum circuit executions (higher = more accurate)
• num_greedy_passes: Optimization iterations
• execute_circuit: Whether to run on quantum hardware

Output

• result: Quantum solution (list of binary values)

3. AirSpace Decoder

The AirSpace Decoder converts the quantum solution back to human-readable format.

Input

• solution: The quantum result from DCQO
• routes: The quantum mapping from the encoder

Output

• channels: List of corridors with their assigned routes.

For example:

[
  {
    "channel": "Corridor 0",
    "routes": [
      {
        "origin": "HEL",
        "destination": "FCO"
      }
    ]
  },
  {
    "channel": "Corridor 1",
    "routes": [
      {
        "origin": "CDG",
        "destination": "OTP"
      },
      {
        "origin": "FCO",
        "destination": "CDG"
      }
    ]
  }
]

4. Air Traffic Visualizer

The Air Traffic Visualizer creates visual maps of flight routes and corridor assignments.

Input

• channels: Corridor assignments from decoder (or custom structure for problem visualization)
• airports: Airport coordinates from encoder
• file_output_dir: Datapool location to store the image
• filename: Name for the generated visualization

Output

Saves an interactive map visualization to the specified datapool

Part 2: Creating the Workflow Service

Step 1: Create the Workflow Service

1. Navigate to service creation

2. Select "Quantum Workflow Service"

3. Fill in the details:

   Field	Value
   Name	Air Traffic Management Workflow
   Summary	Quantum-optimized air corridor assignment for flight routes
   Description	This workflow uses quantum computing to assign flight routes to air corridors, minimizing the risk of collisions when routes intersect. It encodes flight routes as a quantum optimization problem, solves it using DCQO, and generates visual maps showing both the problem and solution.

4. Click "Create Service"

Step 2: Open the Workflow Modeler

1. Click on your newly created service
2. Navigate to the "Workflow" tab
3. You'll see the workflow modeler with a single Start Event (○)

Part 3: Building the Workflow Control Flow

WARNING

You can only use services in your workflow to which you have a valid subscription. Thus, if you developed a service yourself, you must publish it internally and add a subscription to it in an application. Similarly, for public services, you must have a valid subscription within an application.

Step 1: Define Workflow Input

First, configure what data your workflow will accept:

1. Select the Start Event or create one (○)
2. In the properties panel (right side), navigate to "API Description"
3. Add this example request:

{
  "flightRoutes": [
    {
      "origin": "HEL",
      "destination": "FCO"
    },
    {
      "origin": "BER",
      "destination": "MAD"
    },
    {
      "origin": "CDG",
      "destination": "OTP"
    },
    {
      "origin": "FCO",
      "destination": "CDG"
    },
    {
      "origin": "OTP",
      "destination": "OSL"
    }
  ],
  "map_output": {
    "ref": "datapool",
    "id": "uuid-of-your-datapool"
  }
}

Understanding the Input

• flightRoutes: Array of flight routes to optimize (use IATA airport codes)
• map_output: Datapool reference where visualization images will be saved
  • ref: Always "datapool" for platform datapools
  • id: Your datapool UUID (find this in your datapool details)

Step 2: Add the AirSpace Encoder

1. Drag a Platform Service Task from the palette onto the canvas
2. Connect the Start Event to this task (click Start Event, drag the arrow)
3. Click the wrench icon (🔧) on the task
4. Select the AirSpace Encoder service from the dropdown
5. In the General tab (properties panel), set Name to: Encode Flight Routes

Step 3: Create Parallel Gateway for Dual Visualization

After encoding, we want to:

• Solve the quantum problem AND
• Visualize the original problem

Both can happen in parallel:

1. Drag a Parallel Gateway (◇+) after the encoder task
2. Connect the encoder task → parallel gateway
3. This gateway will split the flow into two parallel paths

Step 4: Add Quantum Solving Branch (Top Path)

4.1: Add DCQO Service

1. Drag a Platform Service Task above the parallel gateway
2. Connect parallel gateway → this task
3. Click wrench icon (🔧), select DCQO Service
4. Set Name to: Solve Quantum Problem

4.2: Add Decoder Service

1. Drag another Platform Service Task after DCQO
2. Connect DCQO task → this task
3. Click wrench icon (🔧), select AirSpace Decoder
4. Set Name to: Decode Quantum Solution

Step 5: Add Problem Visualization Branch (Bottom Path)

1. Drag a Platform Service Task below the parallel gateway
2. Connect parallel gateway → this task (second branch)
3. Click wrench icon (🔧), select Air Traffic Visualizer
4. Set Name to: Visualize Original Problem

Step 6: Add Synchronization Gateway

Both parallel branches must complete before continuing:

1. Drag another Parallel Gateway to the right
2. Connect the decoder task → this synchronization gateway
3. Connect the problem visualizer task → this synchronization gateway

Step 7: Add Solution Visualization

1. Drag a Platform Service Task after the synchronization gateway
2. Connect synchronization gateway → this task
3. Click wrench icon (🔧), select Air Traffic Visualizer
4. Set Name to: Visualize Optimized Solution

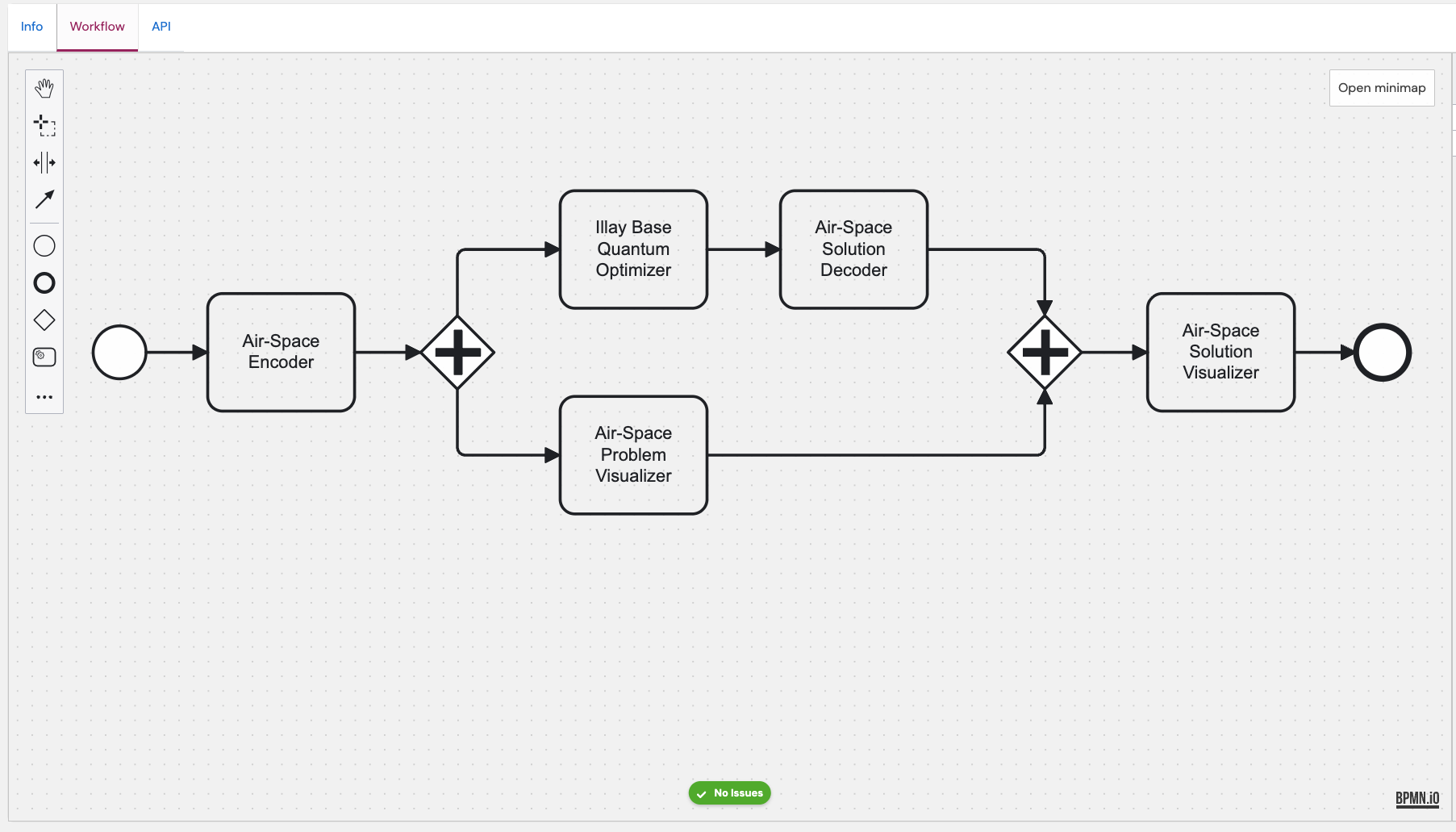

Step 8: Add End Event

1. Drag an End Event (●) from the palette
2. Connect the solution visualizer → end event
3. Save your workflow (button in top left)

Verify Your Control Flow

Your workflow should now look like this:

○ → [Encode Flight Routes] → ◇+ → [Solve Quantum Problem] → [Decode Quantum Solution] → ◇+ → [Visualize Optimized Solution] → ●
                              └ → [Visualize Original Problem] ------------------------------------→ ┘

Part 4: Configuring Data Flow

Now that the control flow is complete, configure how data moves between services.

Step 1: Configure AirSpace Encoder

Select the "Encode Flight Routes" task.

Inputs Section:

1. Click + to add input mapping
2. Local variable name: flight_routes
3. Variable assignment value: flightRoutes

Why no quotes?

flightRoutes (without quotes) references the workflow variable from the Start Event. This directly passes the flight routes array to the encoder service.

Outputs Section:

Store the encoder's three outputs as workflow variables:

1. Click + to add first output

   • Result variable name: quantumProblem
   • Process variable name: coefficients

2. Click + to add second output

   • Result variable name: airportsInRoutes
   • Process variable name: airports

3. Click + to add third output

   • Result variable name: quantumMapping
   • Process variable name: route_mapping

Step 2: Configure DCQO Service

Select the "Solve Quantum Problem" task.

Inputs Section:

Add these input mappings (click + for each):

Local variable name	Variable assignment value	Description
coefficients	quantumProblem	The problem to solve
problem_type	"binary"	Type of optimization problem
shots	1000	Number of circuit executions
num_greedy_passes	3	Optimization iterations
return_circuit	false	Don't return circuit diagram
execute_circuit	true	Execute on quantum hardware

Using Literal Values

When using literal strings or numbers:

• Strings: Use quotes: "binary"
• Numbers: No quotes: 1000
• Booleans: No quotes: true or false

Outputs Section:

1. Click +
   • Result variable name: quantumSolution
   • Process variable name: result

Step 3: Configure AirSpace Decoder

Select the "Decode Quantum Solution" task.

Inputs Section:

Local variable name	Variable assignment value
solution	quantumSolution
routes	quantumMapping.routes

Accessing Nested Data

quantumMapping.routes uses dot notation to access the routes property within the quantumMapping object. This is standard FEEL expression syntax.

Outputs Section:

1. Click +
   • Result variable name: solutionChannels
   • Process variable name: channels

Step 4: Configure Problem Visualizer

Select the "Visualize Original Problem" task.

Inputs Section:

Local variable name	Variable assignment value
channels	[{ "channel": "Problem", "routes": flightRoutes }]
airports	airportsInRoutes
file_output_dir	{ "id": map_output.id, "ref": "datapool" }
filename	"problem-visualization"

Understanding the channels Input

The visualizer expects an array of channel objects. For the problem visualization, we create a single channel called "Problem" containing all the original routes:

[
  {
    "channel": "Problem",
    "routes": flightRoutes
    // Reference to workflow variable
  }
]

This shows all routes in one color before optimization.

Step 5: Configure Solution Visualizer

Select the "Visualize Optimized Solution" task.

Inputs Section:

Local variable name	Variable assignment value
channels	solutionChannels
airports	airportsInRoutes
file_output_dir	{ "id": map_output.id, "ref": "datapool" }
filename	"solution-visualization"

Channel Difference

Notice the solution visualizer uses solutionChannels from the decoder, which contains multiple corridors (Corridor 0, Corridor 1, etc.) with optimized route assignments.

Save Your Work

Click the Save button in the top left of the modeler.

Part 5: Testing Your Workflow

Step 1: Deploy the Workflow

1. In your workflow service, navigate to the "Workflow" tab
2. Click "Deploy" in the top left
3. Wait for deployment to complete (green toast will appear in the top right)

Step 2: Prepare Your Datapool

1. Navigate to Datapools
2. Create a new datapool (or use an existing one)
3. Copy the datapool UUID from the datapool details page

Step 3: Execute the Workflow

1. On your workflow service page, click the green "Run Service" button in the top left

   TIP

   As an alternative, you can navigate to the Service Jobs page and click on "Create Service Job". In the service dropdown, select your workflow service.

2. In the "Input Mode" section, use this test request (⚠️ Do not forget to replace the datapool ID):

   {
     "flightRoutes": [
       {
         "origin": "HEL",
         "destination": "FCO"
       },
       {
         "origin": "BER",
         "destination": "MAD"
       },
       {
         "origin": "CDG",
         "destination": "OTP"
       },
       {
         "origin": "FCO",
         "destination": "CDG"
       },
       {
         "origin": "OTP",
         "destination": "OSL"
       }
     ],
     "map_output": {
       "ref": "datapool",
       "id": "YOUR-DATAPOOL-UUID-HERE"
     }
   }

3. Replace YOUR-DATAPOOL-UUID-HERE with your actual datapool UUID

4. Click "Create Job"

5. You'll automatically be redirected to the job details page

Step 4: Monitor Execution

1. Navigate to the "Service Jobs" tab
2. Find your job in the list (most recent will be at the top)
3. Click on the job to see detailed execution progress
4. Watch as each service task completes:
   • ✅ Encode Flight Routes
   • 🔄 Solve Quantum Problem (this may take 1-2 minutes)
   • 🔄 Visualize Original Problem
   • ✅ Decode Quantum Solution
   • ✅ Visualize Optimized Solution

Parallel Execution in Action

Notice that "Solve Quantum Problem" and "Visualize Original Problem" run simultaneously. This is parallel processing working as designed!

Step 5: View Results

1. When the workflow completes, navigate to your datapool

2. You should see two new files:

   • problem-visualization.png - Shows all original routes
   • solution-visualization.png - Shows routes organized into optimal corridors

3. Preview and compare the images:

   • Problem visualization: All routes shown together (potential conflicts)
   • Solution visualization: Routes colored by corridor assignment (conflict-free)

Part 6: Understanding the Results

Reading the Visualizations

Problem Visualization

• All flight routes shown in the same color
• You can see where routes intersect (potential collision points)
• This represents the input to the optimization problem

Solution Visualization

• Routes colored by corridor assignment
• Different colors = different corridors (vertically separated in real airspace)
• Routes in the same corridor don't intersect
• This represents the optimized solution from quantum computing

What the Quantum Computer Did

The DCQO service:

1. Explored many possible corridor assignments
2. Used quantum superposition to evaluate multiple solutions simultaneously
3. Found the assignment that minimizes conflicts
4. Returned the optimal solution

Part 7: Next Steps

Extend the Workflow

Now that you have a working air traffic management workflow, try these extensions:

1. Multi-Objective Optimization: Add fuel efficiency and delay minimization to the optimization goals

2. Dynamic Route Updates: Create a loop that re-optimizes when new flights are added

3. Weather Integration: Add a weather service that influences corridor assignments

4. Real-Time Monitoring: Connect to a live flight data API for real-world testing

5. Comparative Analysis: Run the same problem on multiple quantum backends and compare results

Share Your Workflow

1. Add comprehensive documentation to your service description
2. Publish the workflow service to the Platform marketplace
3. Create example API calls in the service documentation
4. Share your results with the Platform community

Learn More

• FEEL Expressions Reference: Advanced data transformations
• BPMN 2.0 Specification: Complete BPMN reference
• Platform API Documentation: Integrate workflows into your applications

Summary

Congratulations! You've built a production-ready quantum workflow that:

✅ Solves a real-world optimization problem ✅ Uses quantum computing (DCQO) for enhanced performance ✅ Implements parallel processing for efficiency ✅ Generates visual results for easy interpretation ✅ Handles data flow between multiple services

Key Takeaways

1. Service Orchestration: Workflows coordinate multiple services without custom code
2. Parallel Processing: Use parallel gateways to execute independent tasks simultaneously
3. Data Flow: Map inputs/outputs carefully using FEEL expressions
4. Quantum Integration: DCQO makes quantum computing accessible through simple APIs
5. Visualization: Transform complex results into understandable visual formats

What You Learned

• Creating complex workflow control flows with parallel branches
• Configuring service task inputs/outputs with nested data structures
• Integrating quantum optimization services
• Testing and debugging workflows
• Best practices for production deployment

---

Appendix: Quick Reference

BPMN Elements Cheat Sheet

Element	Symbol	Purpose	When to Use
Start Event	○	Workflow entry point	Every workflow needs exactly one
End Event	●	Workflow completion	Mark successful completion
Platform Service Task	▢	Execute a service	Call any subscribed Platform service
Parallel Gateway	◇+	Split/merge parallel flows	Run tasks simultaneously
Exclusive Gateway	◇×	Conditional branching	Choose one path based on condition
Sequence Flow	→	Execution order	Connect all elements
Error Boundary Event	⚡ on task border	Handle errors	Catch service failures
Timer Boundary Event	⏰ on task border	Handle timeouts	Prevent hanging tasks

Data Mapping Quick Reference

Input Configuration

Local variable name: data
Variable assignment value: {
  "field1": workflowVariable,
  "field2": "literal value"
}

Output Configuration

Result variable name: outputVariable
Process variable name: response.field

FEEL Expression Examples

// Variables (no quotes)
variableName
object.property

// Literals (with quotes for strings)
"string value"
123
true

// Arrays and objects
  [1, 2, 3]
{
  "key": value
}

// Operations
value1 + value2
count(array)
string(number)

// Conditions
value > 10
count(routes) < 5

Resources

Documentation:

• FEEL Expressions
• BPMN 2.0 Specification
• Platform Docs

Services:

• Platform Marketplace
• Service Subscriptions
• Datapools

Community:

Join our Discord Server.
